Reduce Vibration. Minimize Noise. Maximize Equipment Life. Vibration dampers (also known as a vibratory hammer dampener) play a critical role in modern pile driving solutions especially for marine demolition vibration solutions and environmentally sensitive job sites. At Pile Driving USA, we provide high-performance dampers engineered to absorb harmful energy during operation, reduce stress on your equipment, and protect surrounding structures.
Built for durability, flexibility, and easy integration, our vibration dampers are trusted by contractors, engineers, and project managers across commercial, industrial, and infrastructure sectors.
Acting as a vibratory hammer shock absorber, our dampers eliminate vertical forces created by hammers by 85%, providing essential pile run protection and dramatically reducing wear and tear. The damper basically transfers that harmful vertical energy to dissipate horizontally.
- Available for excavator-mounted, crane-mounted, and custom-configured pile drivers
- Designed to extend equipment lifespan and improve operator safety
- Compatible with all Pile Driving USA vibratory hammers and clamp systems
What Are Vibration Dampers and Why Are They the Best Noise Reduction for Pile Drivers?
Vibration dampers are mechanical devices that absorb and dissipate the high-frequency energy generated during pile driving. Without proper damping, this energy transfers to the boom, bracket, and hydraulic components causing premature wear and tear, noise pollution, and potential structural damage.
Top Benefits
- Reduce impact shock and vibration resonance
- Improve equipment control and stability
- Comply with environmental and municipal noise regulations
- Protect nearby buildings, roads, and structures
- Increase safety for operators and job site teams
- Use our vibrator damper to effectively manage noise reduction for pile driver operations in restricted zones.
Technical Specifications
| Specification | Detail |
|---|---|
| Mount Compatibility | Excavator, Crane, Custom Frames |
| Damping Method | Elastomeric Core / Spring Assembly |
| Vibration Frequency Range | Up to 2,400 RPM |
| Max Impact Absorption | 22–40% energy reduction (model-specific) |
| Operating Temp Range | -40°F to 160°F |
| Weight Range | 180–600 lbs (model-dependent) |
| Maintenance Interval | Inspect every 500 hours or 6 months |
Whether you need a crane vibration damper or a high accuracy vibration damping device, our FVD series provides the most reliable vibration suppressor technology in the industry.
| Data | FVD 140 | FVD 260 | FVD 484 | FVD 724 | FVD 1084 | FVD 2004 |
|---|---|---|---|---|---|---|
| Maximum pulling force, tons. | 14 | 26 | 48 | 72 | 100 | 200 |
| Weight, lbs | 420 | 1100 | 3050 | 4100 | 6800 | 18300 |
| Length, in. | 25 | 25 | 39 | 40 | 40 | 64 |
| Height, in. | 52 | 52 | 97 | 120 | 126 | 190 |
| Width, in. | 13 | 14 | 31 | 21 | 45 | 65 |
Where Vibration Dampers Make the Biggest Difference
1. Urban Construction Sites: The ultimate pile driver noise solution to prevent vibration damage to nearby foundations and utilities.
2. Marine & Barge Installations Protect against resonance and deck vibration on floating platforms.
3. Renewable Energy Projects Keep noise levels down on large-scale solar and wind farm jobs.
4. Government & Infrastructure Projects Meet strict municipal compliance and reduce operator fatigue during extended use.
5. Cold-Weather or Offshore Environments Reduce metal fatigue and preserve hydraulic connections under extreme conditions.

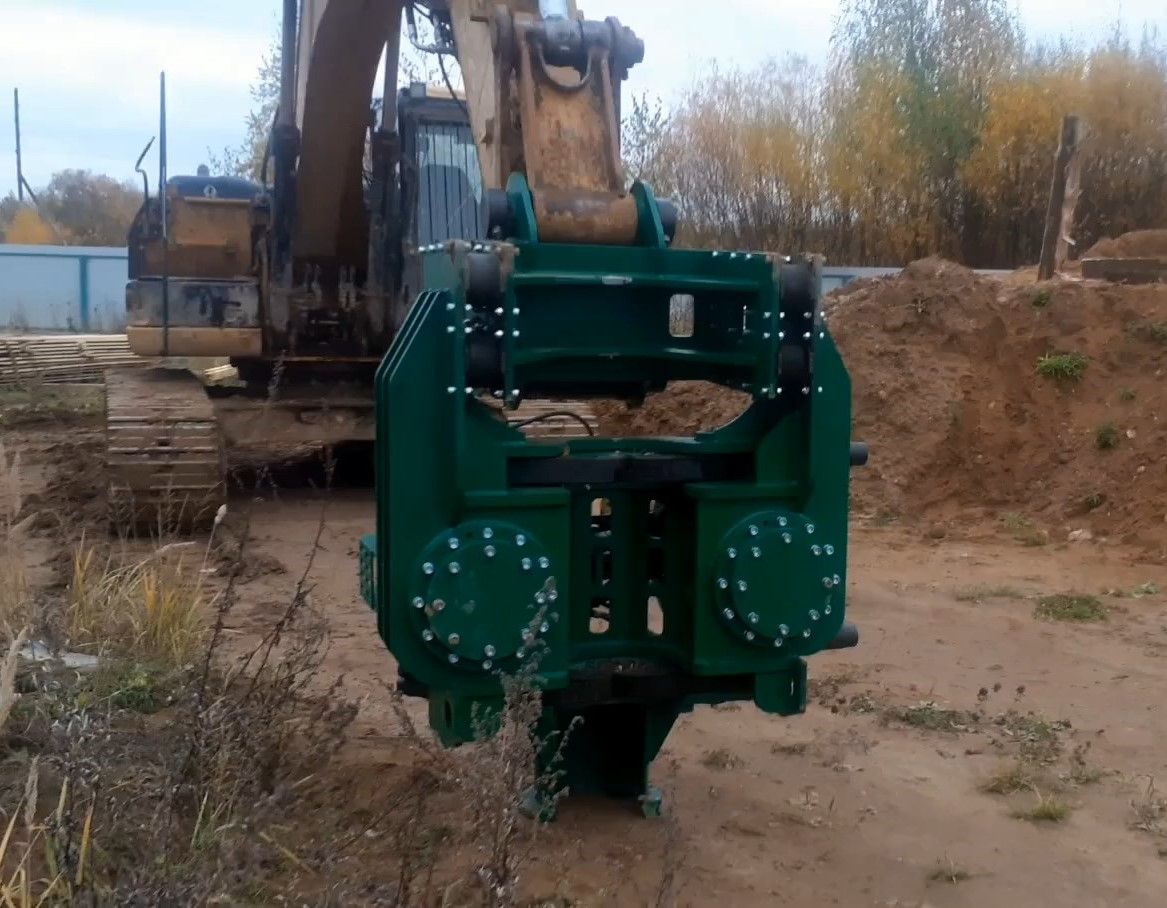

Side-grip vibratory hammer
Installation & Integration
- Installs between pile driver and mount frame
- Compatible with all Pile Driving USA vibratory hammers
- Can retrofit onto existing machines or be factory-installed
- Designed for field serviceability swap in under 60 minutes
Add-ons Available
- Vibration monitoring during pile driving equipment integration for real-time data.
- Custom color coding for fleet management
- Extended-wear elastomer options for extreme cycles
Expert Insights: Why Contractors Choose Our Dampers
Better Performance. Safer Crews. Stronger Foundations.
Investing in vibration dampers isn’t just about protecting your pile driver it’s about reducing total project risk. Our systems are designed and tested to perform under real job site conditions. Whether you're driving sheet piles on the river or anchoring H-beams in a busy urban zone, these dampers help you get the job done right.
FAQs-Vibration Dampers
1. What is a vibration damper in pile driving?
Answer: A vibration damper is a specialized mechanical device installed between the pile driver and the mounting frame (excavator or crane). It is designed to absorb and dissipate high-frequency energy, preventing harmful vibrations from damaging the carrier machine and reducing noise levels on the job site.
2. How much noise reduction can I expect from your vibration dampers?
Answer: Our vibration dampers are engineered to be a leading pile driver noise solution. They can eliminate up to 85% of vertical forces and significantly lower operating noise to approximately 83 dB, making them ideal for urban construction projects with strict noise regulations.
3. Are these dampers compatible with any vibratory hammer?
Answer: Yes, our dampers are highly versatile. We offer a range of models including the FVD 250, FVD 240, and FVD 120 that are compatible with all Pile Driving USA vibratory hammers as well as most third-party excavator and crane-mounted piling systems.
4. How do vibration dampers protect my equipment?
Answer: By acting as a vibratory hammer shock absorber, these devices dissipate vertical energy horizontally. This prevents premature wear and tear on the boom, hydraulic components, and brackets of your excavator or crane, ultimately extending the lifespan of your machinery and reducing maintenance costs.
5. Can I use these dampers for marine or offshore projects?
Answer: Absolutely. Our vibration damping devices are specifically built for durability in harsh environments, including marine demolition and offshore installations. They help manage resonance and deck vibrations on barges, ensuring safety and stability during complex water-based foundation work.
