Excavator Mounted Pile Drivers High-Performance Excavator Mounted Vibratory Hammer Solutions
Hydraulic Pile Driver FR 200
Hydraulic Pile Driver FR 400
Hydraulic Pile Driver FR 160
Hydraulic Pile Driver FR 202
Built for Tight Spaces, Designed for Performance
Our excavator mounted pile driver units are the ideal solution for urban construction, utility installations, and remote site work. Compact, powerful, and easy to operate, each excavator mounted vibratory hammer delivers the driving force you need without requiring a crane, making it perfect for restricted access areas.
Efficient and Adaptable for Any Project

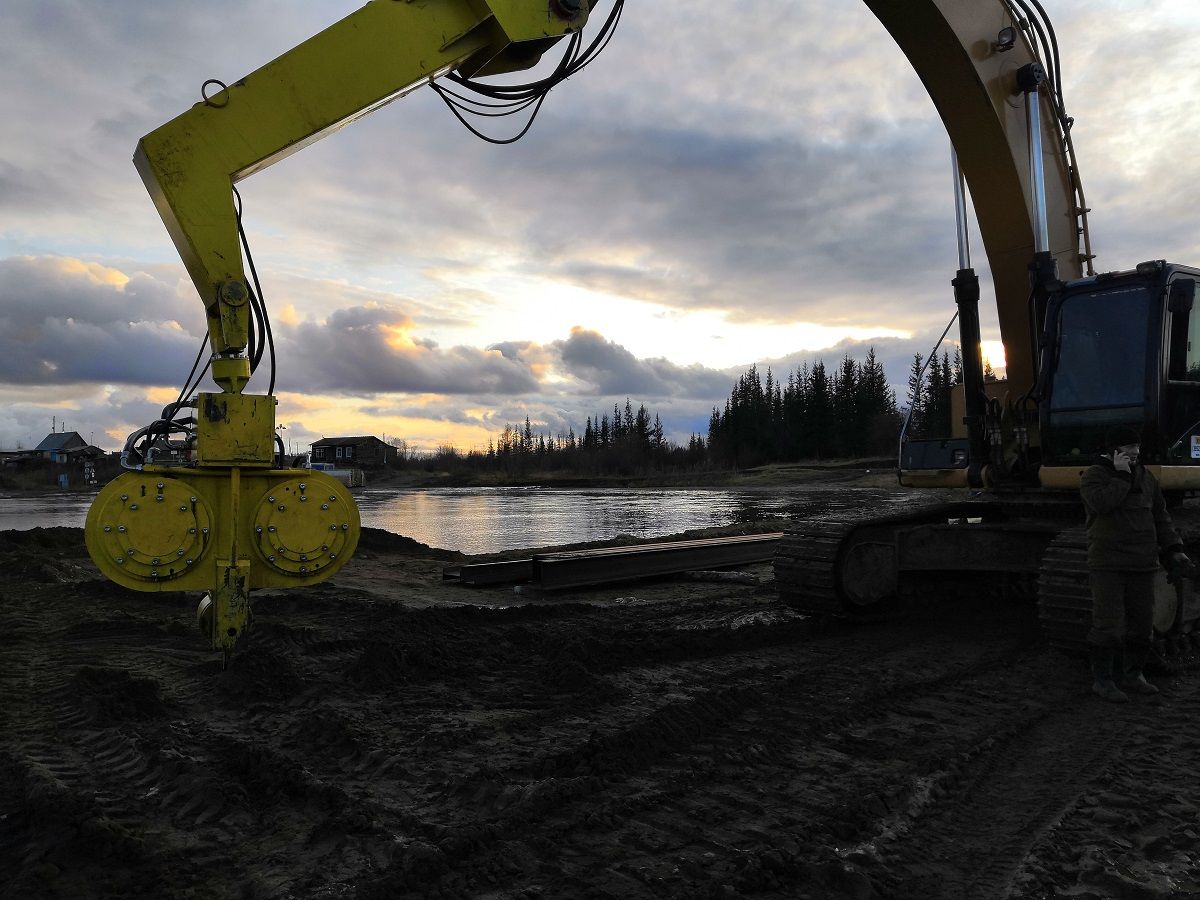

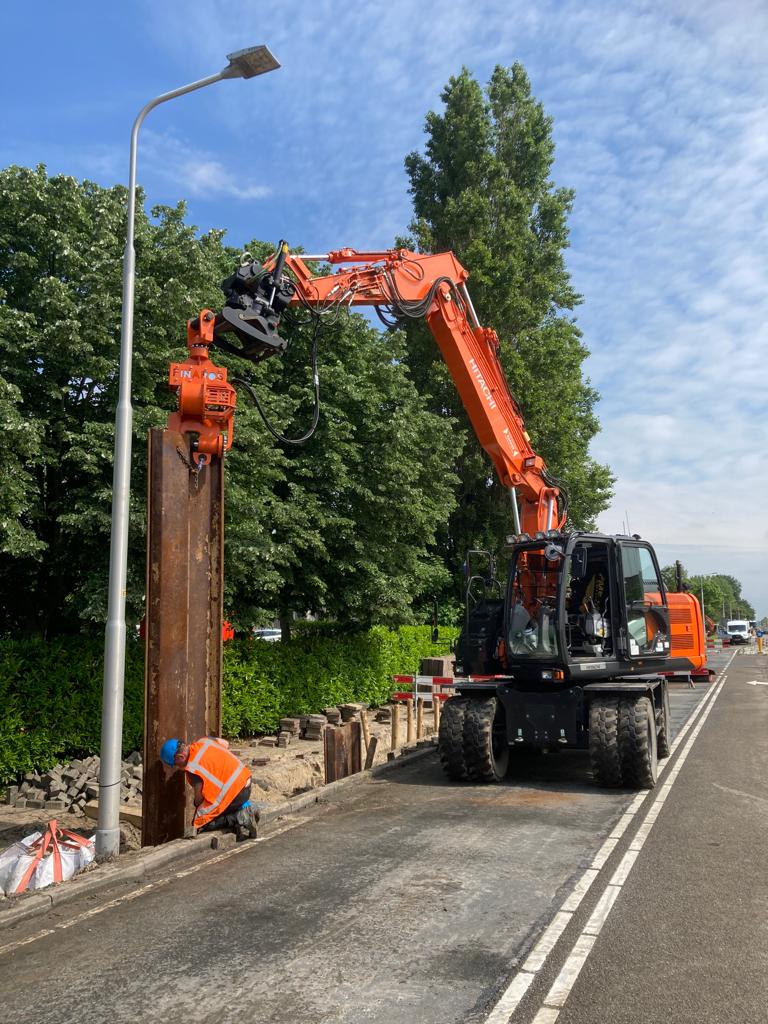

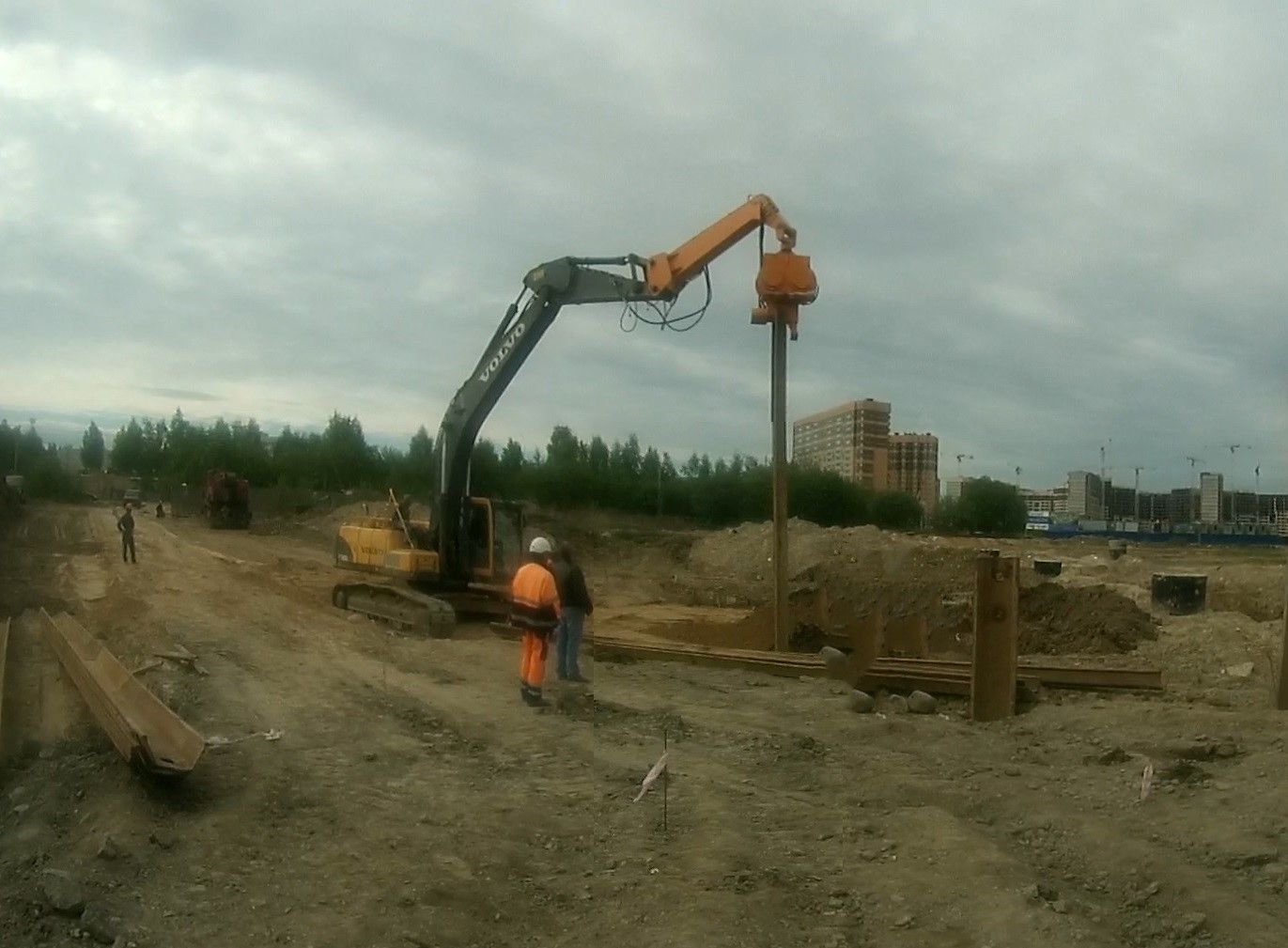

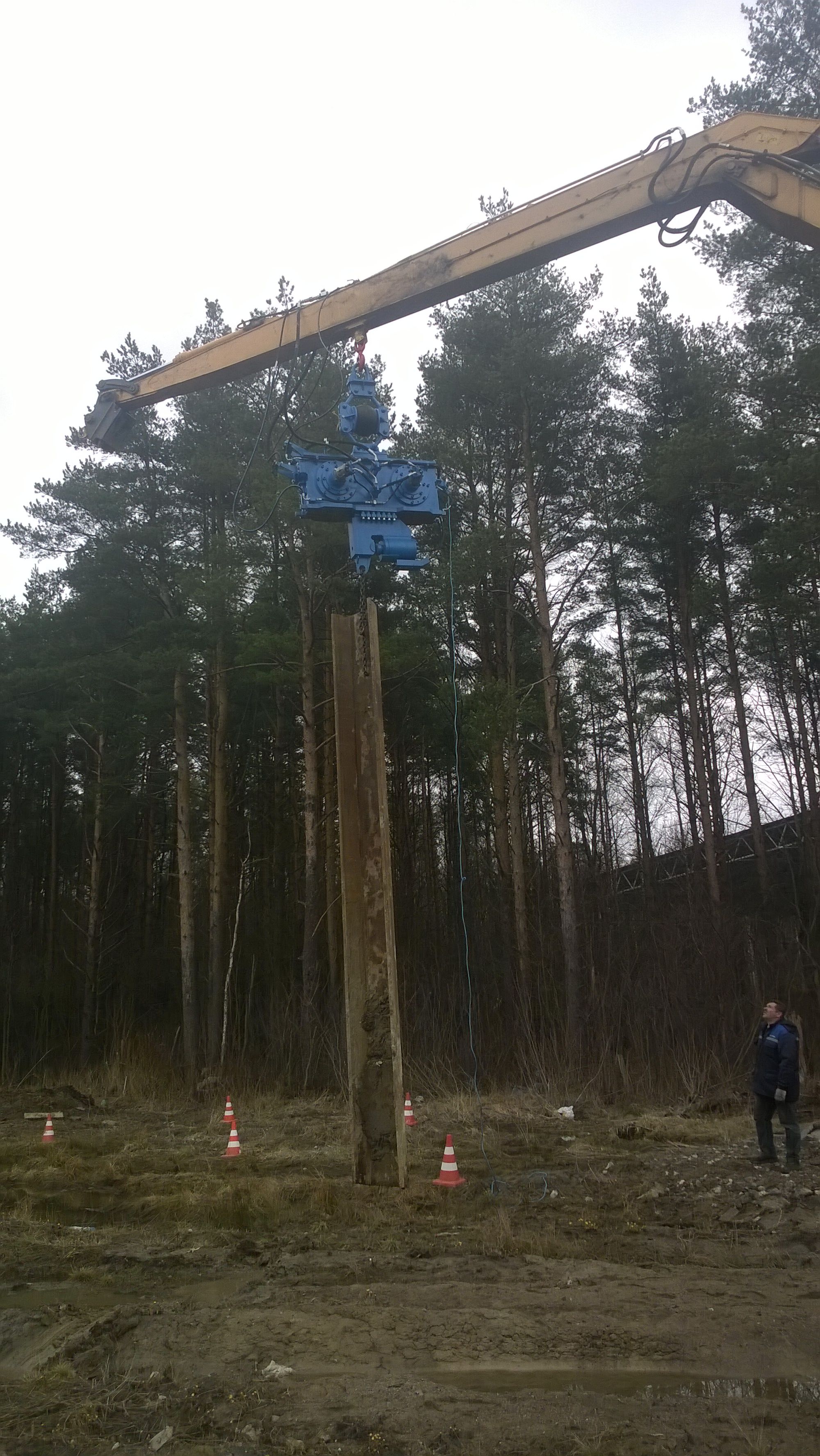

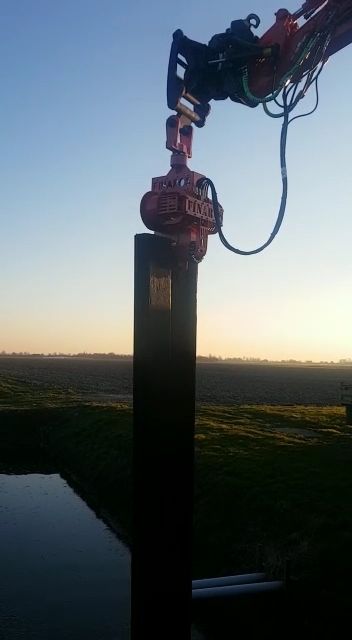

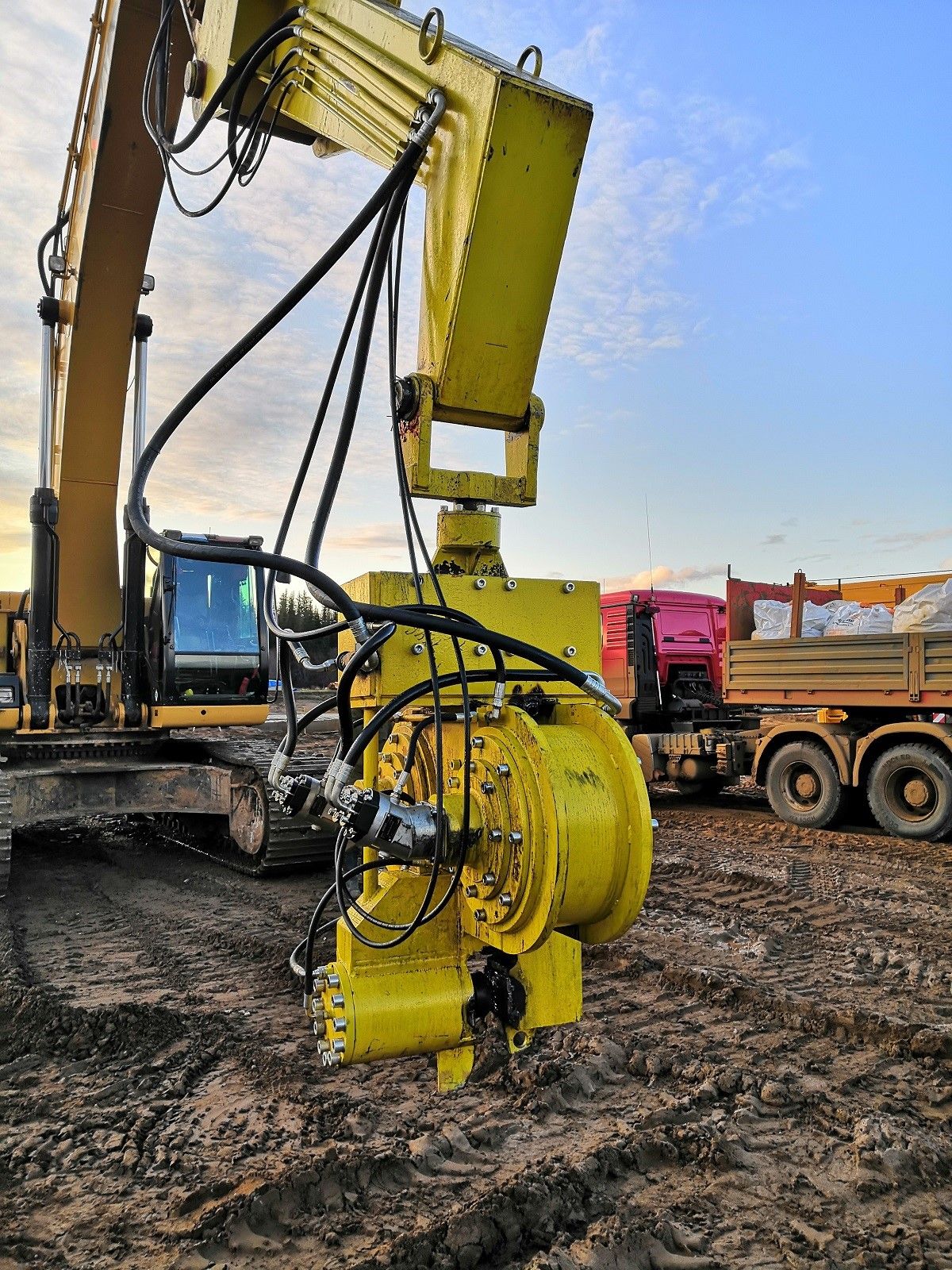

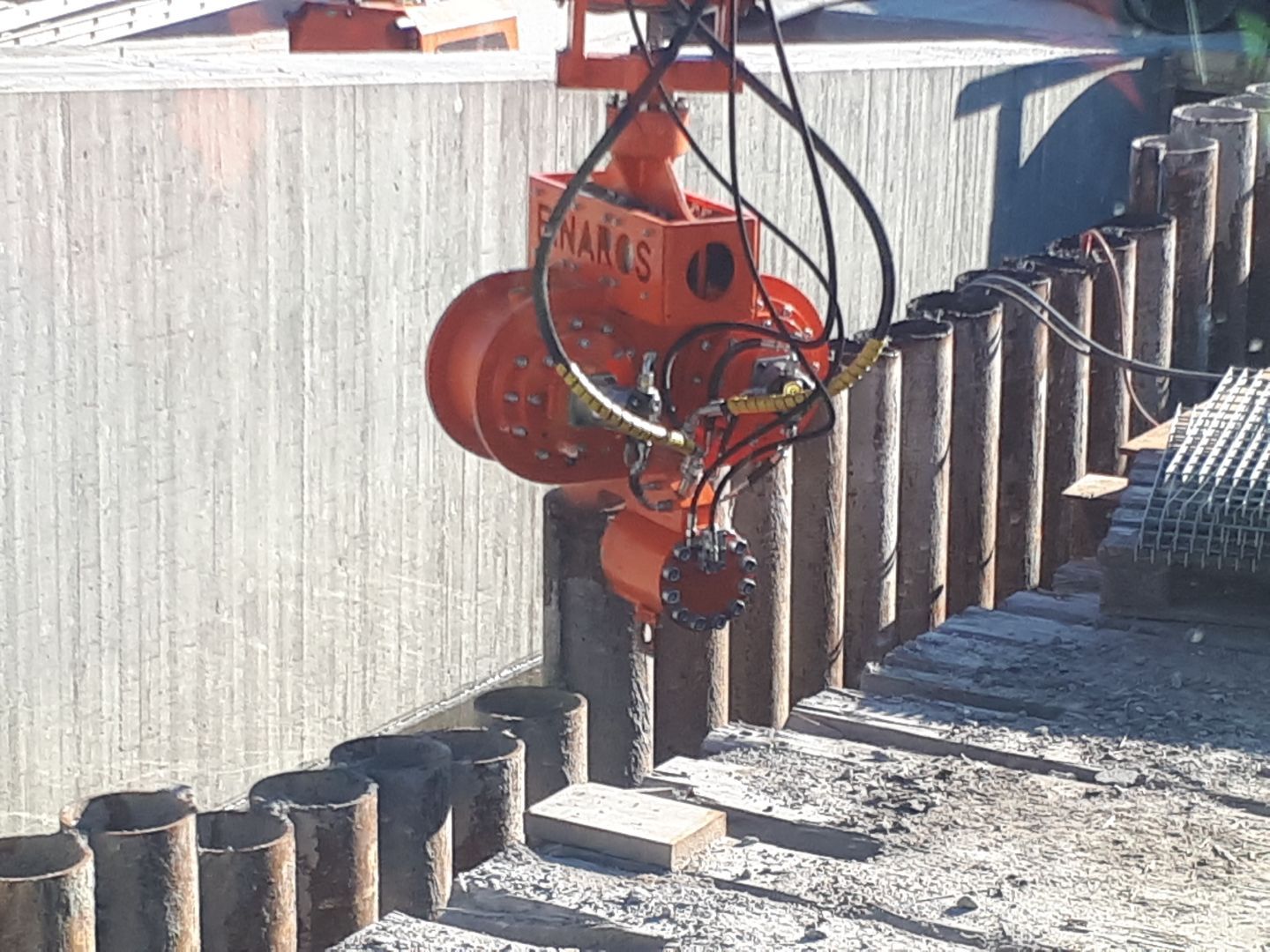

Mounted directly to your carrier machine, an excavator mounted vibro hammer uses hydraulic power to efficiently drive sheet piles, pipe piles, and H-beams in various soil conditions. This excavator mounted solution is perfect for contractors who need maneuverability, speed, and lower setup costs compared to traditional rigs.
Technical Specifications
| Data Name | Finaros 200 | Finaros 400 | Finaros 600 |
|---|---|---|---|
| Weight of Pile Driver, lbs | 1300 | 2095 | 3836 |
| Rated Eccentric Speed, RPM | 2050 | 2040 | 1750 |
| Eccentric moment,in-lbs (kN·m) | 262 (30,2) | 608 (77,1) | 1.597 (184) |
| Centrifugal Force, (tons) | 20,2 | 40,2 | 61,7 |
| Amplitude Maximum, in (mm) | 0,25 (6,3) | 0,38 (9,75) | 0,59 (15) |
| Rated Fluid Flow, LPM | 60 | 120 | 180 |
| Fluid Work Pressure, psi | 4000 | 4000 | 4000 |
| Line Pulling Force Max., (tons) | 2 | 4 | 8 |
| Piling Element Weight Max., lbs | 2.870 | 5.512 | 11.023 |
| A-weighted sound power level, dB (A) | 83 | 83 | 83 |
| Transport Overall Dimensions LWH, in (cm) | 76x36x28 (137x92x71) | 94x73x39 (177x96x79) | 113x57x47 (198x96x130) |
Technical Data for Side Grip Pile Drivers
| Data Name | Finaros 202 | Finaros 408 | Finaros 602 |
|---|---|---|---|
| Weight of Pile Driver, lbs | 3065 | 5600 | 7400 |
| Rated Eccentric Speed, RPM | 2050 | 2040 | 2850 |
| Eccentric moment, in-lbs | 262 | 608 | 1597 |
| Centrifugal Force, (tons) | 20.2 | 40.2 | 61.7 |
| Amplitude Maximum, in | 0.25 | 0.38 | 0.59 |
| Rated Fluid Flow, LPM | 60 | 120 | 180 |
| Fluid Work Pressure, bar | 250 | 250 | 250 |
| Line Pulling Force Max., (tons) | 2 | 4 | 8 |
| Piling Element Weight Max., lbs | 2870 | 5520 | 11400 |
| Swing/tilt angle, (degrees) | 360/±45 | 360/±45 | 360/±45 |
| A-weighted sound power level, dB (A) | 83 | 83 | 83 |
| Transport Overall Dimensions LWH, in | 76x36x28 | 94x73x39 | 113x57x47 |
| Maximum tubes diameter, in | 12 | 20 | 28 |
Best for These Applications
- Urban foundation projects
- Highway and bridge repair zones
- Utility trenching and pole driving

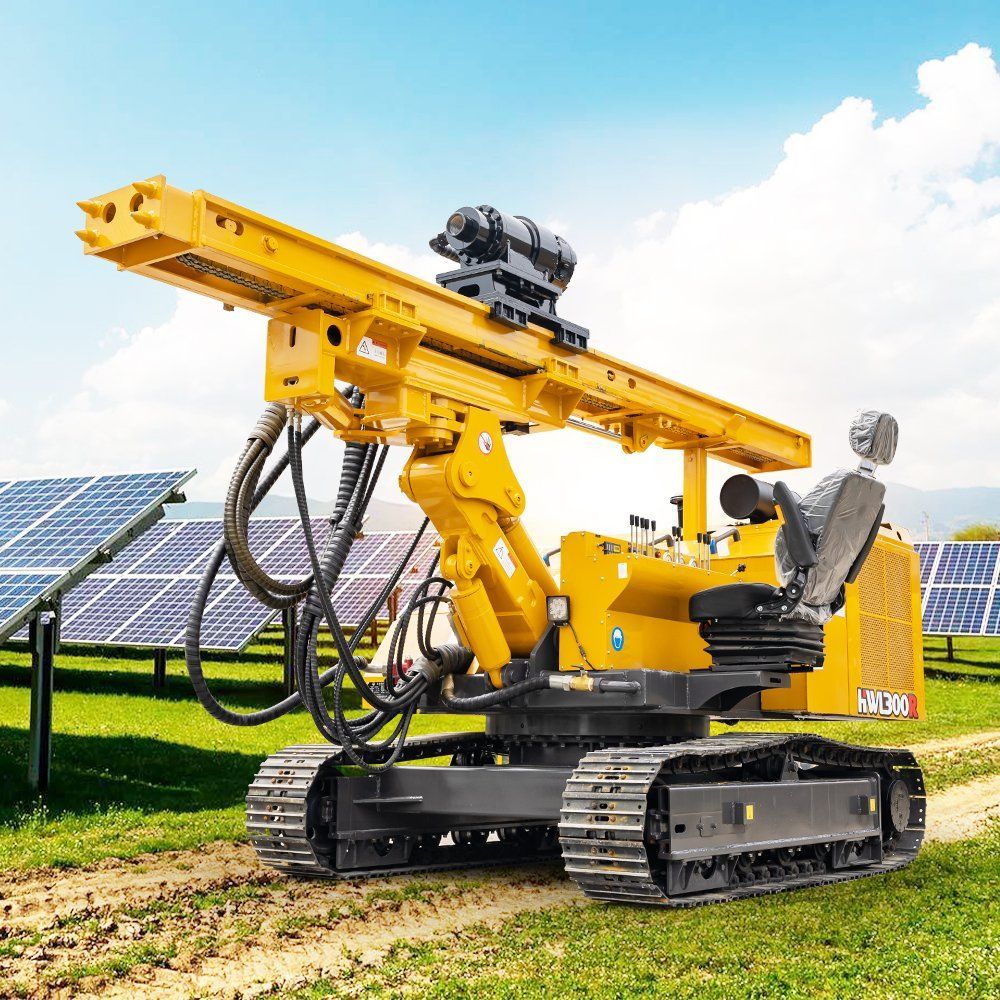

- Solar farm installations
- Lightweight marine and dock work
Why Choose Excavator Mounted Pile Drivers
- Works with your existing excavator no crane needed
- Quick attach and easy hydraulic connection for all excavator mounted vibratory hammers
- Minimal footprint for restricted sites
- Low operating and transportation costs
- Built to EU safety and performance standards
Pair With These Products
- Diesel Hydraulic Power Packs
- Wearing Parts & Accessories
- Custom Solutions
Need Help Selecting a Model?
Let our team help you match the right excavator-mounted pile driver to your machine, application, and soil conditions.
FAQs Excavator Mounted
1. What is an excavator mounted pile driver?
Answer: An excavator mounted pile driver is a powerful vibratory attachment designed to connect directly to the hydraulic system of your existing excavator. It allows contractors to drive sheet piles, pipes, and H-beams efficiently without the need for a dedicated crane, making it a cost-effective solution for foundation work.
2. How does an excavator mounted vibratory hammer work?
Answer: An excavator mounted vibratory hammer uses high-frequency vibrations to fluidize the soil, reducing friction between the pile and the ground. This allows the pile to sink into the earth under its own weight and the downward pressure of the excavator's arm, ensuring a fast and precise installation.
3. Can I use an excavator mounted vibro hammer in urban areas?
Answer: Yes, an excavator mounted vibro hammer is the ideal choice for urban construction and confined job sites. Its compact footprint allows for easy maneuverability in tight spaces, and our Finaros models are designed with advanced technology to manage noise and vibration resonance, meeting strict municipal standards.
4. Is any specific hydraulic requirement needed for excavator mounted vibratory hammers?
Answer: Yes, each excavator mounted vibratory hammer requires specific hydraulic flow (LPM) and pressure (PSI) to operate at peak performance. For example, our Finaros 200 requires 60 LPM, while larger models like the Finaros 600 need up to 180 LPM. Our team can help you match the right model to your excavator’s hydraulic capacity.
5. What are the advantages of using excavator mounted equipment over crane-mounted rigs?
Answer: The primary advantages of excavator mounted solutions include lower transportation costs, faster setup times, and the ability to work in low-clearance areas. Since it works with your existing machinery, it eliminates the expensive rental or mobilization costs of a heavy-duty crane while providing excellent maneuverability for utility and infrastructure repairs.
