Crane Mounted Pile Drivers – Maximum Force for Large-Scale Foundations
Hydraulic Pile Driver FR 800
Hydraulic Pile Driver FR 600
Hydraulic Pile Driver FR 1200
Engineered for Heavy-Duty Jobs
Our crane mounted pile driver units are built for the most demanding applications from deep foundation projects to marine construction and infrastructure builds. As a leading pile driving crane part supplier, we ensure these high-capacity crane pile hammer units deliver unmatched force, depth, and stability for every driving crane operation.
Built to Drive Deeper and Stronger

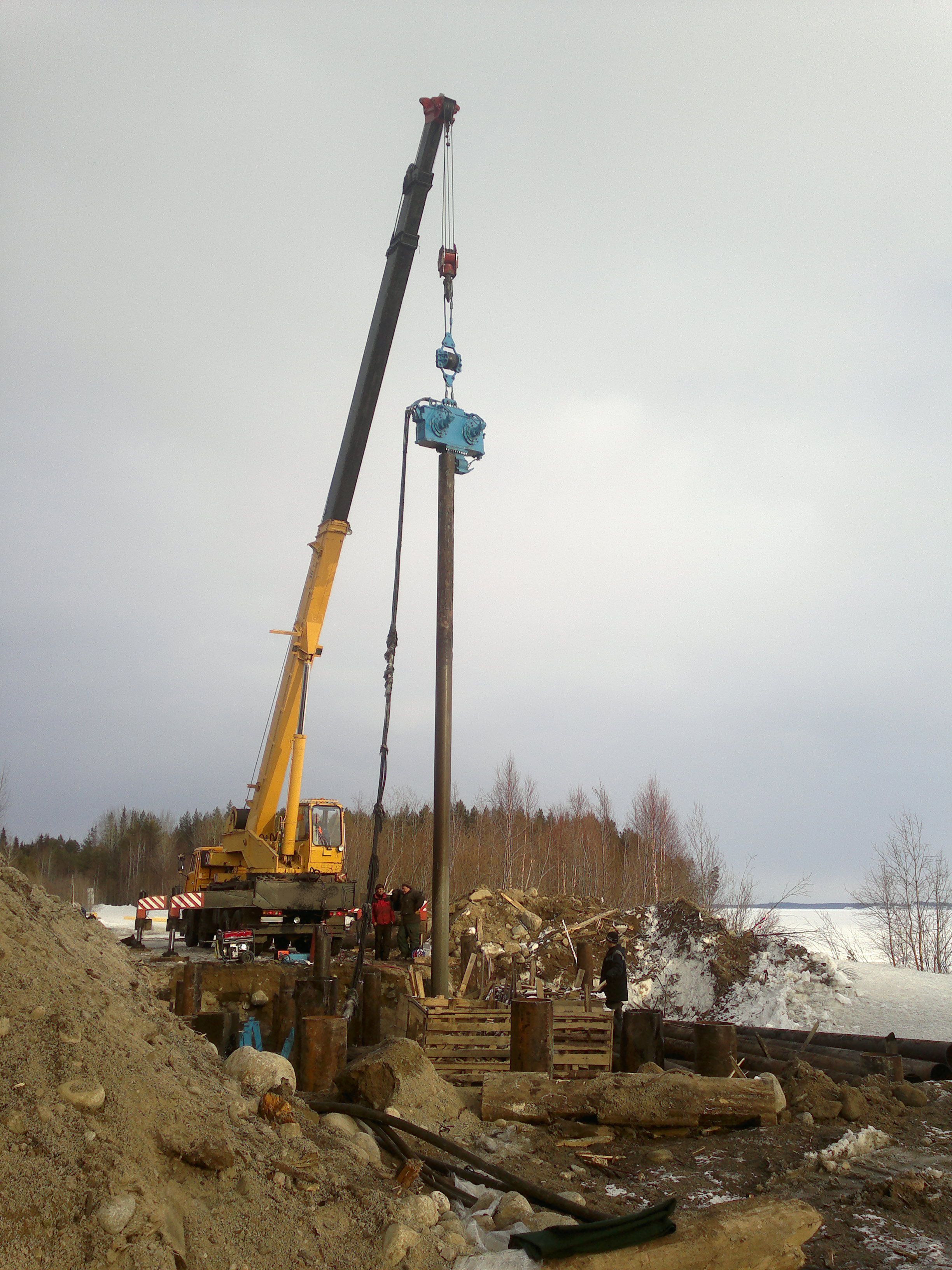

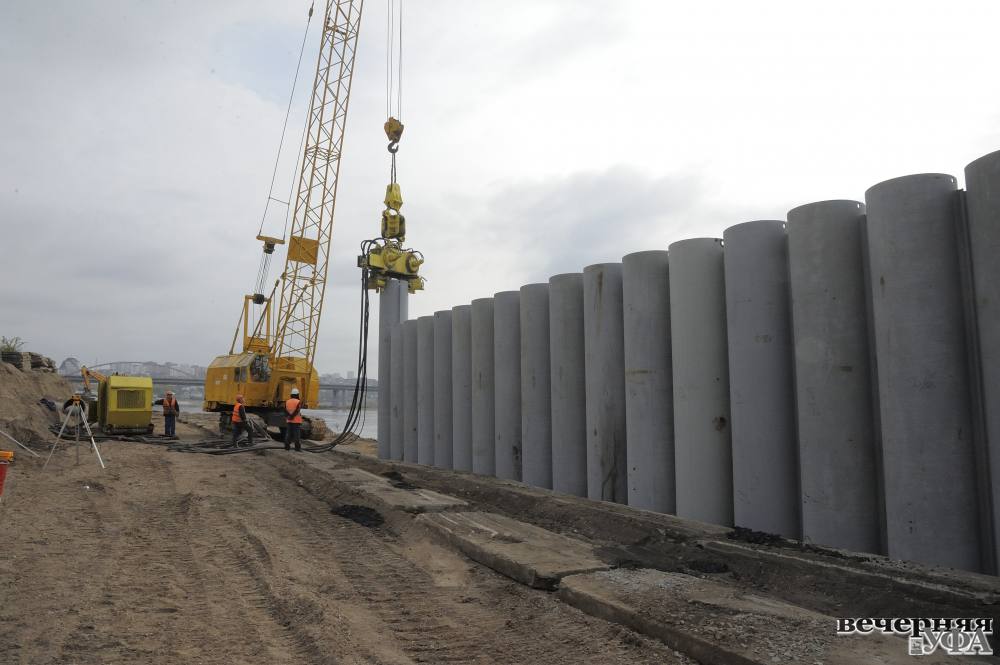

Whether integrated with crawler cranes or lattice boom cranes, each pile driver crane provides powerful vibration for driving sheet piles and large beams. These crane mounted units are perfect for contractors who need a reliable pile driving crane for major commercial, energy, and bridge projects in tough soil conditions.
Technical Specifications
| Model | Mount Type | Vibration Frequency | Weight | Driving Force | Power Requirements |
|---|---|---|---|---|---|
| CM-2200 | Crane | 1600 rpm | 2,200 kg | 100 kN | 120 L/min |
| CM-3000 | Crane | 1800 rpm | 2,800 kg | 140 kN | 160 L/min |
| Model | Finaros 600 | Finaros 800 | Finaros 1200 | Finaros 1600 | Finaros 2000 |
|---|---|---|---|---|---|
| Weight of Pile Driver, lbs | 1300 | 7400 | 11700 | 18100 | 29800 |
| Rated Eccentric Speed, RPM | 1740 | 1750 | 1640 | 1580 | 1800 |
| Eccentric moment, in-lbs | 1.600 | 3.470 | 5.200 | 6.940 | 0-10.400 |
| Centrifugal Force, (tons) | 62 | 80 | 118 | 159 | 0-200 |
| Amplitude Maximum, in (mm) | 0,6 | 0,58 | 0,55 | 0,75 | |
| Rated Fluid Flow, LPM | 60 | 120 | 180 | 1,06 | |
| Fluid Work Pressure, psi | 4000 | 4000 | 4000 | 4000 | 4000 |
| Line Pulling Force Max., (tons) | 14 | 26 | 48 | 72 | 108 |
| Piling Element Weight Max., lbs | 11000 | 16000 | 19000 | 25000 | 44000 |
| A-weighted sound power level, dB (A) | 83 | 83 | 83 | ||
| Transport Overall Dimensions LWH, in | 76x36x28 | 94x73x39 | 113x87x47 | 140x 94x52 | 150x106x74 |
Ideal for These Projects
- Bridge and overpass piling
- Marine foundations and dock walls
- Wind turbine and offshore structures

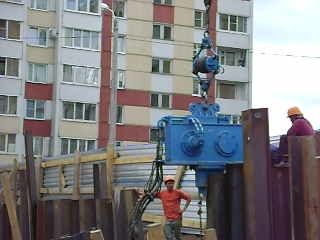

- Sheet pile wall installation
- Riverbank and port infrastructure
Why Crane-Mounted Pile Drivers?
- Superior depth and crane piling power for deep foundations
- High vibration force for dense soils and large profiles
- Designed for long runtime and continuous duty
- Built to meet EU and U.S. compliance standards
- Custom boom mount options available
Compatible Equipment
Let’s Power Your Largest Projects
Need help choosing a crane mount pile driver or integrating it with your current fleet? Our experts are ready to help you find the right crane pile driver specifications for your next heavy-duty project.
FAQS
1. What are the benefits of using a crane mounted pile driver?
Answer: A crane mounted pile driver offers superior depth and driving power compared to smaller rigs. These units provide the high vibration force necessary for driving sheet piles, pipes, and large beams into dense soils and deep underwater foundations, making them essential for large-scale infrastructure projects.
2. Which types of cranes are compatible with your crane piling equipment?
Answer: Our crane piling units are highly versatile and can be mounted on crawler cranes, lattice boom cranes, or custom carriers. Whether you need a crane mount pile driver for a bridge project or offshore construction, our equipment is designed for easy integration with most heavy-duty cranes.
3. Can you provide replacement parts for a pile driving crane?
Answer: Yes, as a specialized pile driving crane part supplier, we provide a full range of high-quality wearing parts and accessories. From crane pile hammer components to specialized clamps, we ensure your machinery stays operational with minimal downtime.
4. How does a crane pile hammer handle dense soil conditions?
Answer: A crane pile hammer (vibratory) uses high-frequency vibrations to reduce friction between the pile and the soil. Our heavy-duty models, like the Finaros series, deliver massive centrifugal force, allowing the pile driver crane to penetrate tough strata that standard equipment cannot handle.
5. Are these crane mounted units suitable for marine construction?
Answer: Absolutely. Crane mounted vibratory hammers are the industry standard for marine foundations, dock walls, and port infrastructure. Their ability to be operated from barges or long-reach cranes makes them the perfect driving crane solution for underwater piling and riverbank stabilization.
